Brand : Kingston Technology

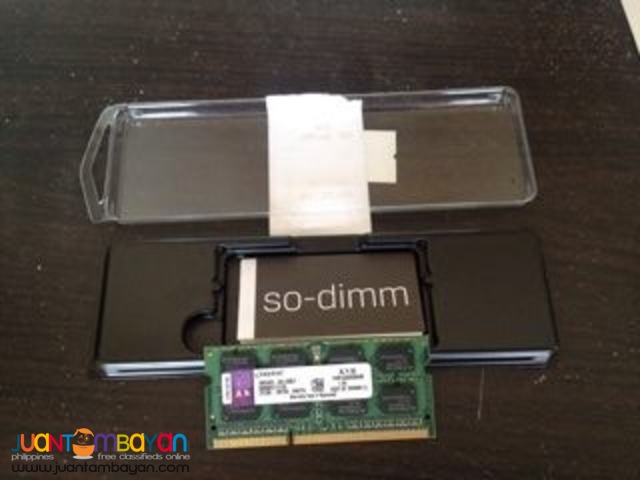

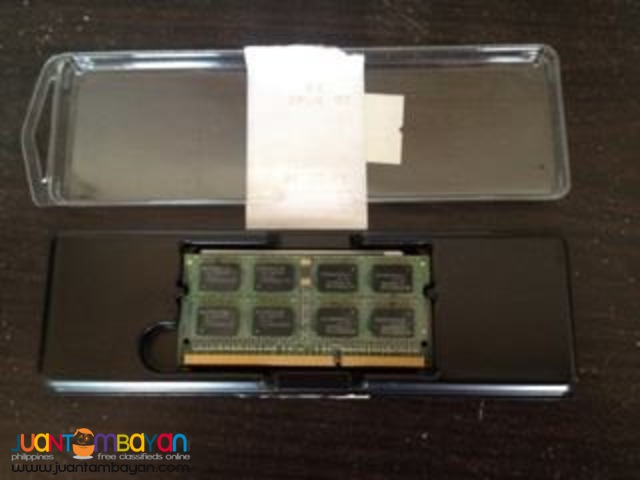

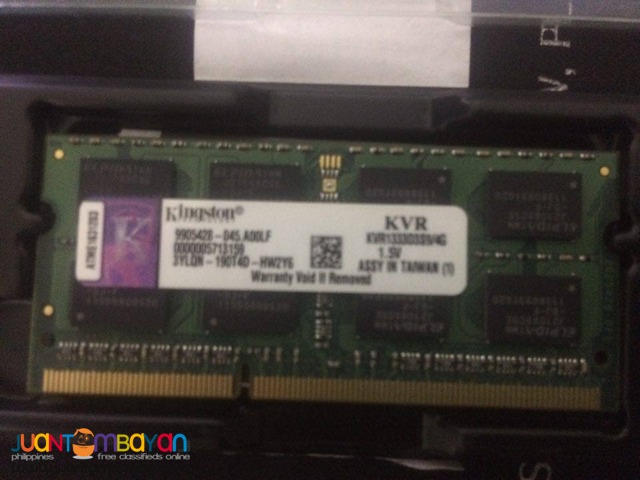

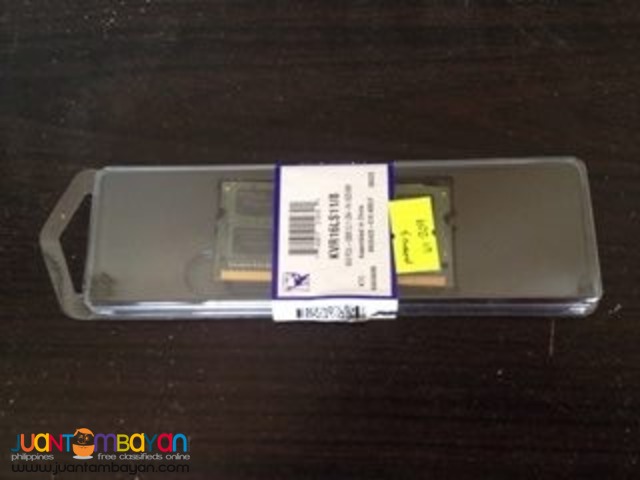

KVR1333D3S9/4G 4GB 2Rx8 512M x 64-Bit PC3-10600 CL9 204-Pin SODIMM
DESCRIPTION :
This document describes ValueRAM's 512M x 64-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), 2Rx8 memory module, based on sixteen 256M x 8-bit DDR3-1333 FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES :
• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V) • 667MHz fCK for 1333Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component
SPECIFICATIONS :
- CL(IDD) 9 cycles
- Row Cycle Time (tRCmin) 49.5ns (min.)
- Refresh to Active/Refresh 160ns (min.)
- Command Time (tRFCmin)
- Row Active Time (tRASmin) 36ns (min.)
- Power (Operating) 1.410 W*
- UL Rating 94 V - 0
- Operating Temperature 0o C to 85o C
- Storage Temperature -55o C to +100o C
