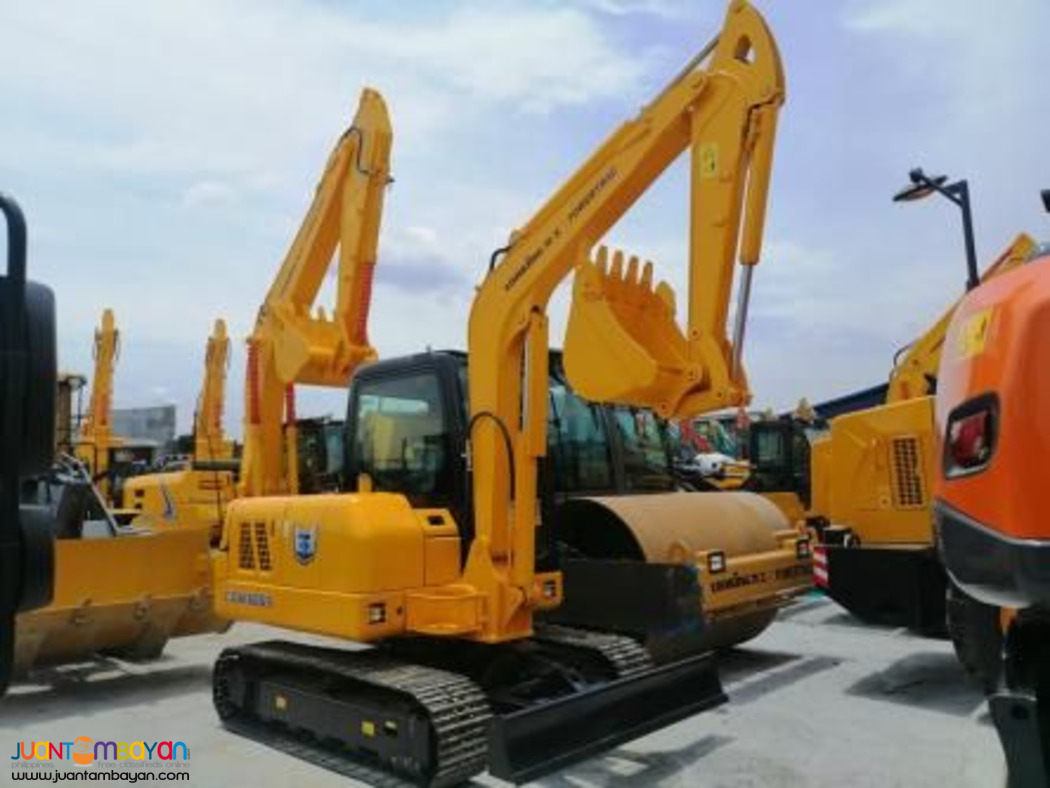

![Lonking Excavator CDM 6065 Lonking Excavator CDM 6065](https://www.juantambayan.com/oc-content/uploads/3237/1182461.jpg)
Construction MachineryHomeProducts Construction Machinery
CDM6065E
FeaturesSpecificationsStandard/Optional EquipmentOthers
Model CDM6065E
General Operating weight( kg) 6050
Standard bucket(m³) 0.25
Bucket range(m³) 0.1-0.33
Ground pressure(kPa) 32
Travel speed(km/h) 2.5/5.0
Swing speed (rpm) 11
Gradeability 35° (70%)
Engine Model Yanmar 4TNV98(Euro IIIA)
Rated power(Kw(hp)/rpm) 44(59.75)/2200
Displacement (L) 3.319
Fuel tank(L) 95
Hydraulic System Max.pressure of Implements(MPa) 24.5
Max. flow of system( L/min) 156.2
Hydraulic oil tank(L) 115
Working Device Boom length(mm) 3000
Arm length(mm) 1550
Bucket radius(mm) 937
Digging Force Max. arm digging force (SAE/ISO)(kN) 28/31
Max. bucket digging force (SAE/ISO)(kN) 40/45
